For LiDAR Products & Pricing
Call or Text: ​501-349-6655
or
Email: LiDAR@hdmsarch.com

miniVUX-1UAV

VUX-1UAV

Specifications


  • System Accuracy -- 5mm
  • Dimensions: 227 x 180 x 125 mm
  • Weight: 3.5kg
  • Measurement: Up to 1,000,000 measurements/sec
  • Power Consumption: 65 Watts
  • Voltage Input: 11-32VDC
  • Field of View: Up to 330º
  • Regular Point Pattern
  • ​Perfectly Parallel Scan Lines
  • Multiple Target Capability: ​Practically unlimited number of target echoes

​​Specifications


  • System Accuracy -- 15 mm
  • Dimensions: 242 x 99 x 85 mm
  • Weight: 3.5lbs

INS+PPK Snoopy L1/L2

  • L1/L2 GPS+-GLONASS (or Beidou)
  • SBAS
  • Single Antenna
  • Power Consumption: 16 Watts @ 100 scans/sec
  • Voltage Input: 11-34VDC
  • Internal storage for several days
  • Virtually unlimited removable storage
  • Quick release mount

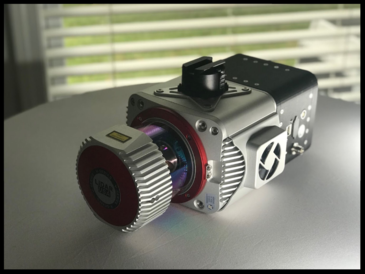

RIEGL miniVUX-1UAV

  • 100,000 points/sec
  • 5 target echoes
  • 100 scans/second
  • max range 150m range​

VUX-1HA

The V-Series is a versatile series designed for compact and lightweight needs. These scans are well suited for agriculture & forestry, archaeology & cultural heritage documentation, construction site monitoring, and more.

VUX-1LR

Specifications


  • System Accuracy -- 15 mm
  • Dimensions: 227 x 180 x 125 mm
  • Weight: 3.5kg
  • Measurement: Up to 750,000 measurements/sec
  • Power Consumption: 65 Watts
  • Voltage Input: 11-32VDC
  • Field of View: Up to 330º
  • Regular Point Pattern
  • Perfectly Parallel Scan Lines
  • Multiple Target Capability: Practically unlimited number of target echoes

​​​Specifications


  • System Accuracy -- 10 mm
  • Dimensions: 227 x 180 x 125 mm
  • Weight: 3.5lbs

INS+PPK Snoopy L1/L2

  • GPS+-GLONASS (or Beidou)
  • SBAS
  • Single Antenna
  • Power Consumption: 60 Watts @ 200 scans/sec
  • Voltage Input: 11-32VDC
  • Internal storage for several days
  • Virtually unlimited removable storage
  • Quick release mount

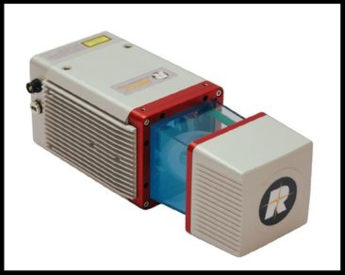

REIGL VUX-1UAV

  • 500,000 points/sec
  • 5 target echoes
  • 200 scans/sec
  • max range 1000m range

Snoopy V-Series
